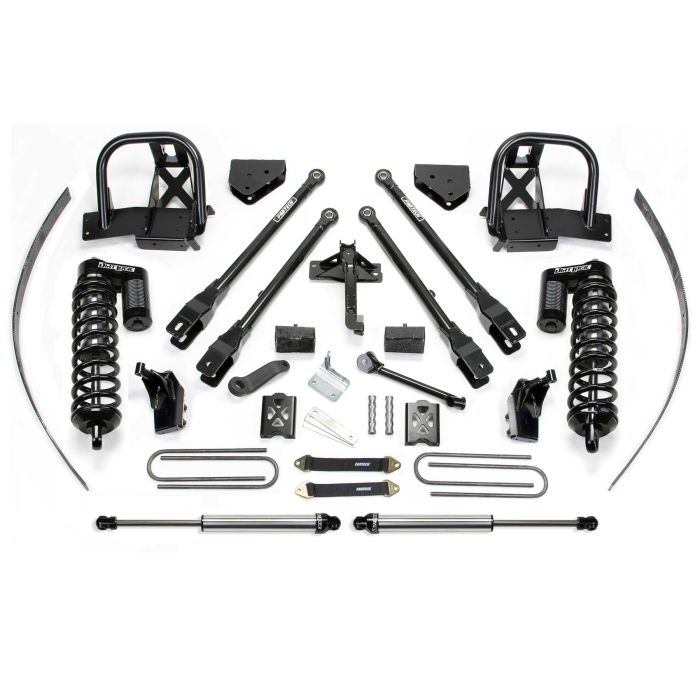

FABTECH 2008-10 FORD F250 4WD- 8″ 4 LINK SYSTEM W/ DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS

$7,090.56
SKU
K2036DL

PRODUCT OVERVIEW

DESCRIPTION

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilover conversion. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is an Add-a-leaf and block & u-bolt kit.

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Add-a-Leaf
  • Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22140 COMPONENT BOX 1

1 FTS22078BK COMPONENT BOX 2

1 FTS22080BK COMPONENT BOX 3

2 FTS835012 FRONT DIRT LOGIC 4.0 COILOVER

1 FTS22104 REAR BLOCK & ADD-A-LEAF KIT

2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

  • 4.0″ OD Stainless Steel Body
  • 3 5/8″ OD Billet Aluminum Piston
  • 1 1/4″ NitroSteel® Black Piston Rod
  • Adjustable Coilover Construction
  • 3/4″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming

Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

ADDITIONAL INFORMATION

DRIVE 4WD

LIFT 8"

MAKE FORD

MODEL F250

SYSTEMS 4 LINK SYSTEM

YEAR 2008, 2009, 2010

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas mot

INSTRUCTIONS

More Information
Component Description: 8″ 4 LINK SYSTEM W/ DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS
Please choose your option: Clear
Ship Via: Freight
