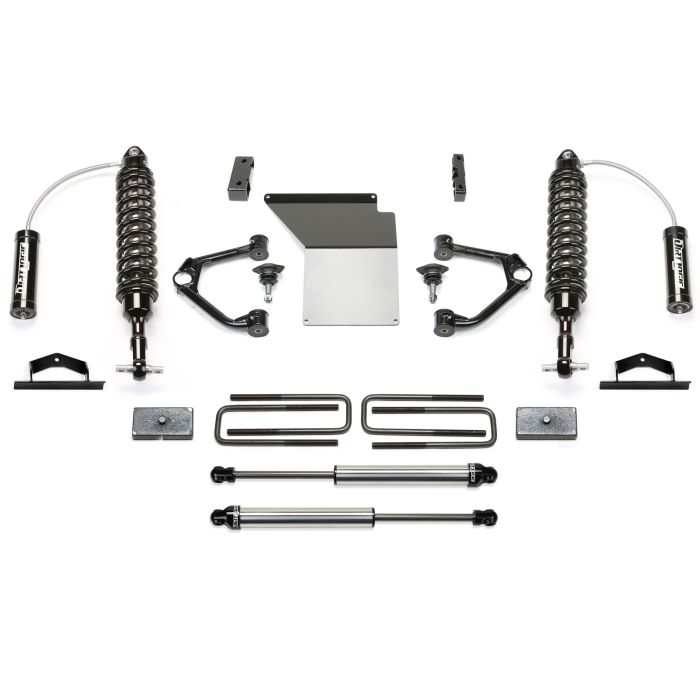

FABTECH 2007-18 GM C/K1500- 4″ BALL JOINT SYSTEM W/ BALL JOINT UCA W/ FRONT DIRT LOGIC 2.5 COILOVER RESI & REAR DIRT LOGIC SHOCKS

$3,404.25
SKU
K1107DL

PRODUCT OVERVIEW

DESCRIPTION

This system offers a mild lift height with easy installation for clearance of 33” tall tires on GM C/K1500s. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.

  • Value priced system with Fabtech quality
  • Increased ground clearance
  • Includes Dirt Logic 2.5 Coilovers w/Resi for superior damping
  • Extended range upper ball joints provide a smooth quiet ride
  • Increased fender clearance compared to a Leveling Kit for 33” tall tires
  • Suspension can be restored to stock
  • Easy installation

QTY PART # DESCRIPTION

1 FTS21217 COMPONENT BOX W/ DIRT LOGIC SHOCKS

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 RESI COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

  • 2.5″ OD Stainless Steel Body
  • 2.25″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Cold Wound Coil Springs
  • Adjustable Coilover Construction
  • 5/8″ Spherical Ball Mounting Ends
  • 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 33/12.50R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

MAKE GM

MODEL C1500, K1500

DRIVE 2WD, 4WD YEAR 2014, 2015, 2016, 2017, 2018

SYSTEMS BUDGET SYSTEM

LIFT 4"

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

17. Does not fit standard cab.

128. Fits models with Factory Forged Black Steel Upper Control Arm.

INSTRUCTIONS

PDF DOWNLOADS

More Information
Component Description: 4″ BALL JOINT SYSTEM W/ BALL JOINT UCA W/ FRONT DIRT LOGIC 2.5 COILOVER RESI & REAR DIRT LOGIC SHOCKS
