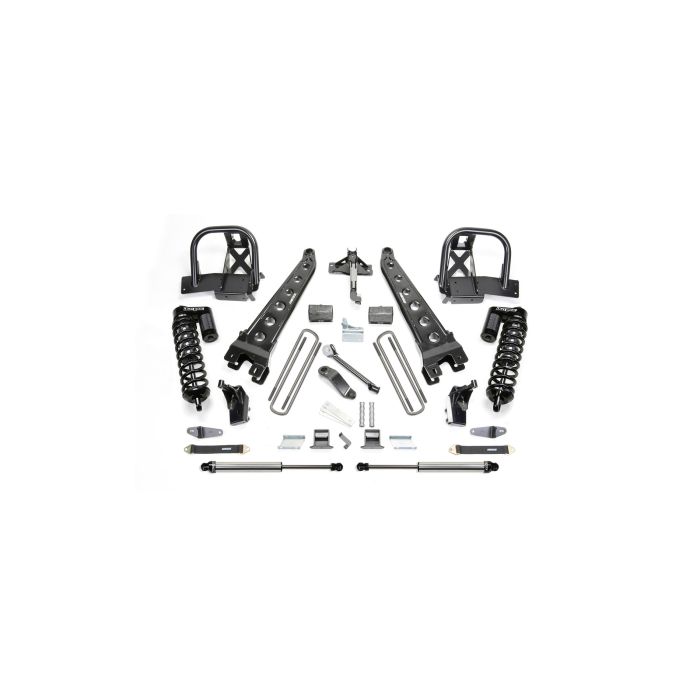

FABTECH 2011-16 4" Radius Arm System w/Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks - Ford F250 4WD
Fabtech Motorsports is a manufacturer of suspension systems and lift kits for Chevy, Ford, Ram, Jeep, Hummer, Nissan, and Toyota. With over 25 years of experience, they lead the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast
PRODUCT OVERVIEW
Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/ 4" thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Coilover piggyback reservoir shocks.
Kit# K2204DL
Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming
Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming
Use 35/12.50R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming
Oty Part # Description
1 FTS22101 Component Box 1
1 FTS22139 Component Box 2
1 FTS22143 Front Coilover Conversion
2 FTS835222 Front Dirt Logic 4.0 Coilover
2 FTS810052 Rear Dirt Logic 2.25 Non Resi
*FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motors.
| Component Description: | 4" Radius Arm System w/Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks - 2011-16 Ford F250 4WD |
|---|---|
| Please choose your option: | Clear |
| Ship Via: | Freight |
