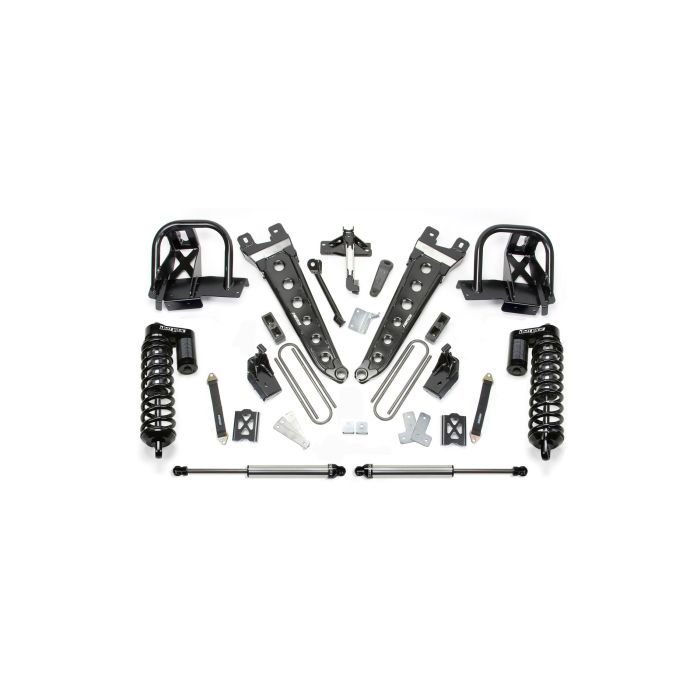

FABTECH 2005-07 6" Radius Arm System w/ Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks -Ford F250 4WD w/ Factory Overload

PRODUCT OVERVIEW

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift comes from our Dirt Logic 4.0 Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

Kit# K20121DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Oty Part # Description

1 FTS22026BK Component Box 1

1 FTS22052BK Component Box 2

2 FTS835002 Front Dirt Logic 4.0 Coilover

1 FTS22035 Rear Block Kit

2 FTS810052 Rear Dirt Logic 2.25 Non Resi

*FOOTNOTES

38. Will not work on models with digital climate control.
