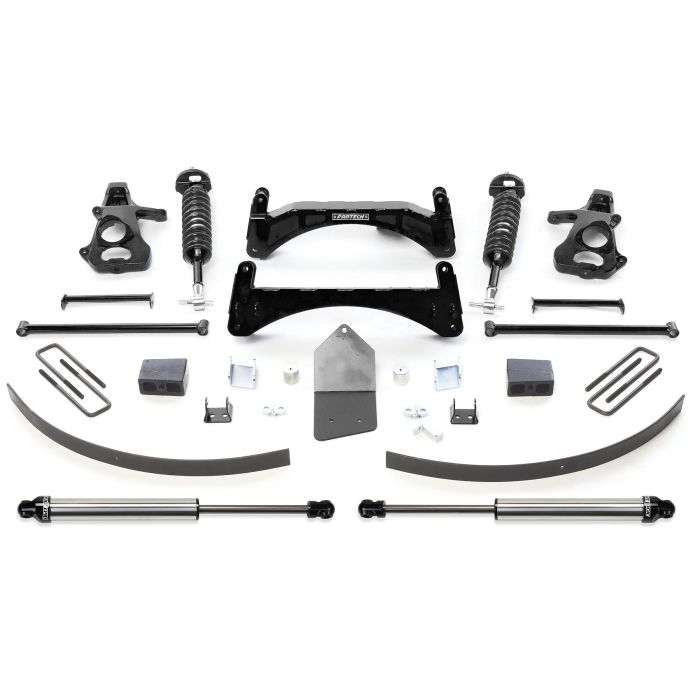

FABTECH 2007-13 GM C1500-6″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Our 6" Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35" tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. Rear suspension lift is accomplished via a block and add-a-leaf system. The Performance system offers Dirt Logic 2.5 Shocks in place of the factory front coilover assembly. This system has been properly designed to work with the factory Stabilitrak® safety functions without reprogramming the vehicle’s computer.

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Impact Struts
• Rear Add-a-leaf
• Rear Block & U-bolt Kit

QTY PART # DESCRIPTION

1 FTS21060BK COMPONENT BOX 1

1 FTS21061BK COMPONENT BOX 2

1 FTS21196 FRONT DIRT LOGIC 2.5 COILOVERS

2 FTS810742 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

• 2.5″ OD Stainless Steel Body
• 2.25″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Cold Wound Coil Springs
• Adjustable Coilover Construction
• 5/8″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

MAKE GM

MODEL C1500

DRIVE 2WD

YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013

SYSTEMS PERFORMANCE SYSTEM

LIFT 6"

FOOTNOTES

1. Will not fit models with factory AutoRide shocks.

17. Does not fit standard cab models.
