PRODUCT OVERVIEW

DESCRIPTION

The Fabtech Leveling System provides a small amount of lift for the front of the vehicle. This will typically help to level the stance of the vehicle’s ride height front to rear as compared to the nose down appearance from the factory. With the added ride height it allows for the installation of larger tires and wheels for a more aggressive look.

The installation of the kit is typically very simple and can be done with basic hand tools. There is no modification of the vehicle required for installation and can be returned back to stock if needed.

All Fabtech Leveling Kits have undergone extensive engineering to properly function without placing the ball joints and tie rods into bind. This is an important feature as some taller kits on the market create bind and can result in failure of those parts over time.

Fabtech offers an exclusive Trade Up program on all their Leveling Kits. If you ever want to step up to a complete 4″ or 6″ Fabtech suspension system after you buy a Leveling Kit, you can trade in the previously purchased kit towards the price of a new Fabtech system. Please see program details.

• Heavy Duty Construction
• 1/4″ Thick steel with high grade hardware
• Aircraft grade billet aluminum
• Powdercoated for maximum corrosion resistance
• Properly engineered to eliminate ball joint, tie rod and steering bind
• 5 Year 60,000 Mile Powertrain Warranty

QTY PART # DESCRIPTION

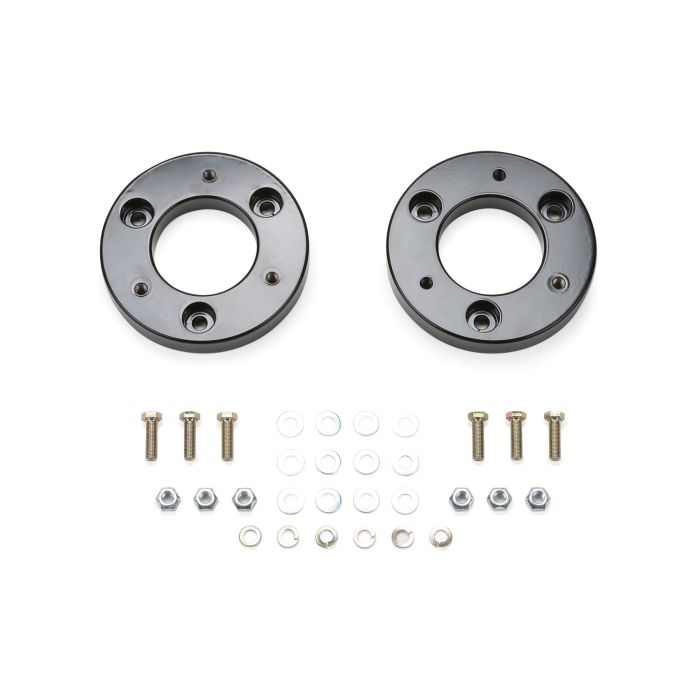

1 FTL5107 COMPONENT BOX

ADDITIONAL INFORMATION

YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

MAKE CHEVY, GM

MODEL C1500, C1500 SUT, C1500 SUV, K1500, K1500 SUT, K1500 SUV

DRIVE 2WD, 4WD

FOOTNOTES

101. Some models may not sit level after install.

194. Check with aftermarket wheel manufacturer for wheel compatibility on 2019 vehicles.

195. Will not fit 2019 models equipped with magnetic ride control.

TIRES & WHEELS

• Use 285/70R17 tires w/ 17×9 wheels w/ 5 1/2” BS w/ minor trimming
• Use 295/65R18 tires w/ 18×9 wheels w/ 5 1/2” BS w/ minor trimming
• Use 305/55R20 tires w/ 20×9 wheels w/ 5 1/2” BS w/ minor trimming
• Use 305/45R22 tires w/ 22×9 wheels w/ 5 1/2” BS w/ minor trimming
