FABTECH 2008-10 Ford F250 4WD- 10″ RADIUS ARM SYSTEM W/ DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

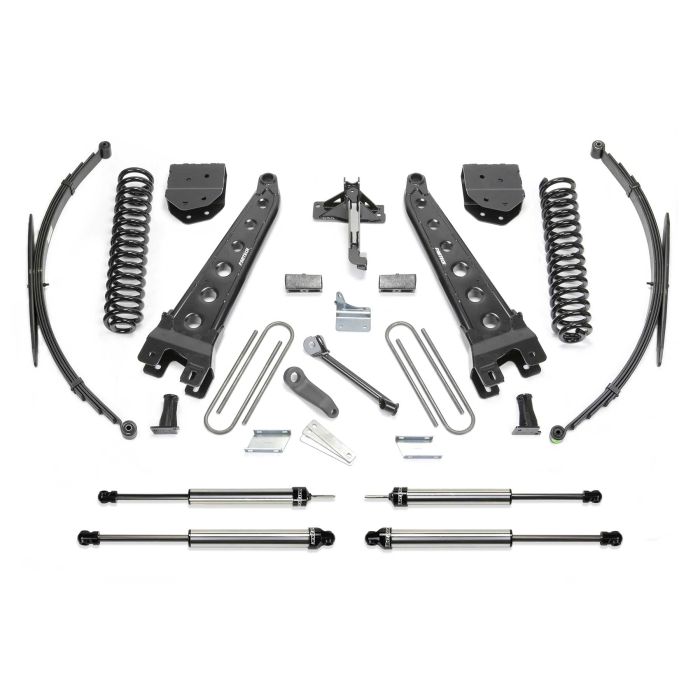

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes with replacement Leaf Springs and a block & u-bolt kit.

• Fabtech Replacement Radius Arms
• Fabtech Front Coil Springs
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Leaf Spring Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22081BK COMPONENT BOX 1

1 FTS22100BK COMPONENT BOX 2

1 FTS22107 REAR BLOCK & LEAF SPRING KIT

2 FTS810392 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810652 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capacity.

ADDITIONAL INFORMATION

LIFT 10" DRIVE 4WD MAKE FORD SYSTEMS RADIUS ARM SYSTEM MODEL F250 YEAR 2008, 2009, 2010

TIRES & WHEELS

Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming

Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends
