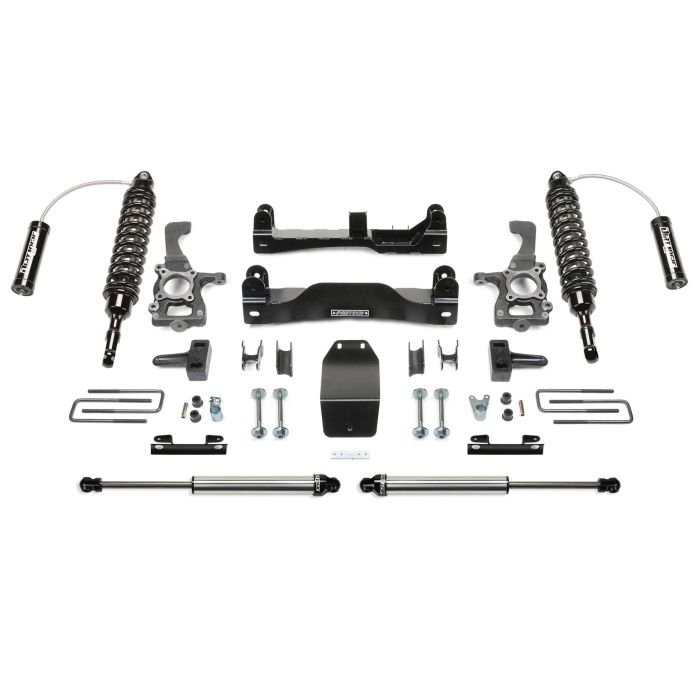

FABTECH- 2009-13 FORD F150 4WD- 4″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS
Fabtech Motorsports is a manufacturer of suspension systems and lift kits for Chevy, Ford, Ram, Jeep, Hummer, Nissan, and Toyota. With over 25 years of experience, they lead the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast
PRODUCT OVERVIEW
DESCRIPTION
Fabtech’s Upper Control Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. These Upper Control Arms eliminate upper ball joint w/ super strong 1″ ID Stainless American Uniballs. Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks. The Chromoly tubing reduces flex found in stock arms for more positive road feel. The 17-4 Stainless Steel Heat treated Uniball pin fits into the factory ball joint taper withoutmodification to the spindle for an easy return to stock feature.
- Built with same materials as found on Trophy Trucks
- .120″ Wall 4130 Chromoly Tubing. 1.50″ OD
- .250″ wall DOM Bushing Barrels
- PTFE lined 1″ ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
.
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS22155 | COMPONENT BOX 1 |
| 1 | FTS22157 | COMPONENT BOX 2 |
| 1 | FTS22189 | FRONT DIRT LOGIC 2.5 COILOVER W/RESI |
| 2 | FTS810292 | REAR DIRT LOGIC 2.25 NON RESI |
INCLUDED SHOCKS
FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5″ OD Stainless Steel Body
- 2.25″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8″ Spherical Ball Mounting Ends
- 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
- Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
| MODEL | |
|---|---|
| SYSTEMS | |
| MAKE | |
| LIFT | |
| DRIVE | |
| YEAR |
FOOTNOTES
14. Cannot use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
124. Requires cutting of fenderwell sheetmetal for use with 35” tir
