PRODUCT OVERVIEW

DESCRIPTION

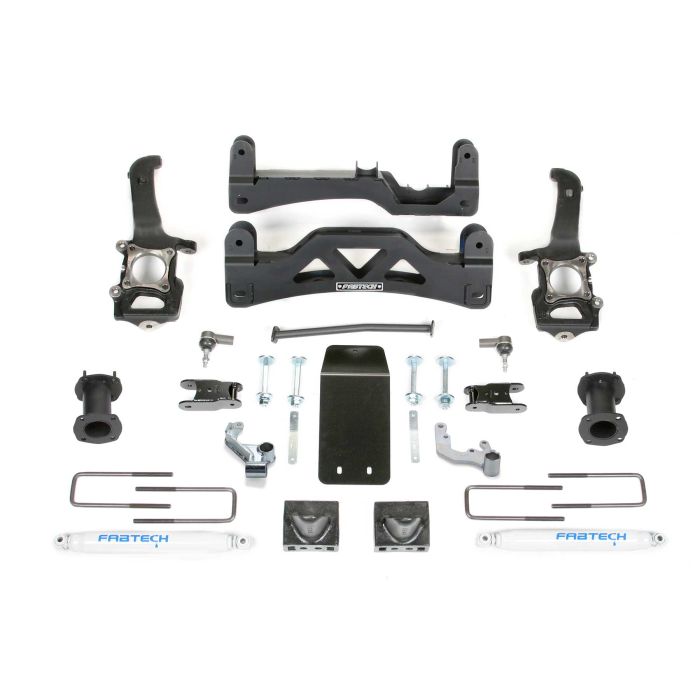

Our new 2009-13 F150 GEN II system utilizes the proven designs from our 2014 system at an affordable price and fast install for the earlier model trucks.< br />This system includes heavy duty 1/4″ thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18″ or 20″ wheels.

The Basic GEN II System includes front spacers utilizing the factory Coilover shock while the rear receives Fabtech Performance twin tube shocks.

• Heavy Duty 1/4″ Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Front Coilover Spacers
• Rear Block & U-bolt Kit

6″ BASIC SYSTEM GEN II W/ FRONT STOCK COILOVER SPACERS & REAR PERFORMANCE SHOCKS

OTY PART # DESCRIPTION

1 FTS22172 COMPONENT BOX 1

1 FTS22173 COMPONENT BOX 2

2 FTS7266 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

6″ BASIC SYSTEM GEN II W/ FRONT STOCK COILOVER SPACERS & REAR STEALTH SHOCKS

QTY  PART DESCRIPTION

1 FTS22172 COMPONENT BOX 1

1 FTS22173 COMPONENT BOX 2

2 FTS6266 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

TIRES & WHEELS

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

SYSTEMS BASIC SYSTEM

MODEL F150

MAKE FORD

DRIVE 4WD

LIFT 6"

YEAR 2009, 2010, 2011, 2012, 2013
