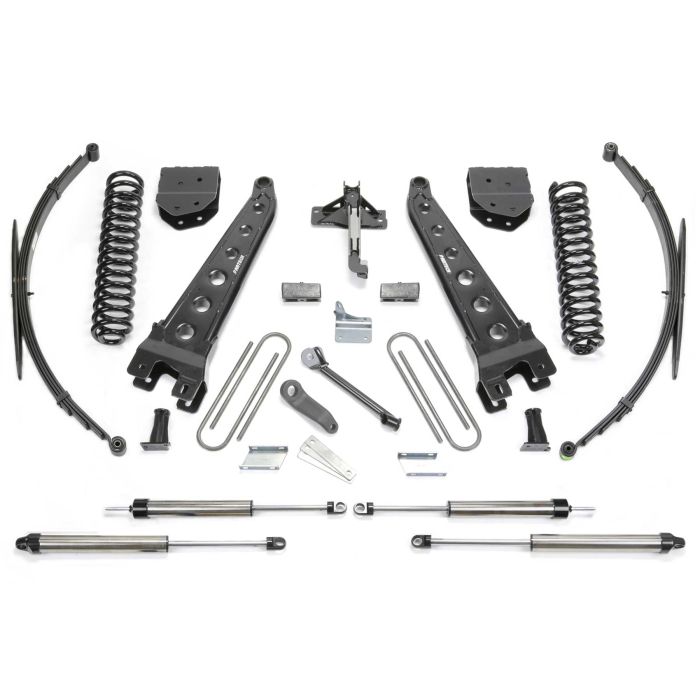

FABTECH 2011-16 Ford F250 4WD- 10″ RADIUS ARM SYSTEM W/ DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Fabtech Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.

• Fabtech Replacement Radius Arms
• Front Coil Springs
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm Rear Leaf Springs
• Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22081BK COMPONENT BOX 1

1 FTS22144 COMPONENT BOX 2

1 FTS22107 REAR BLOCK & LEAF SPRING KIT

2 FTS810391 FRONT DIRT LOGIC 2.25 SHOCK

2 FTS810651 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capacity.

ADDITIONAL INFORMATION

DRIVE 4WD, LIFT 10", SYSTEMS RADIUS ARM SYSTEM,  MODEL F250,  MAKE FORD,  YEAR 2011, 2012, 2013, 2014, 2015, 2016

TIRES & WHEELS

Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming

Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ Piston Rod Polyurethane Mounting Ends
