FABTECH 2011-16 Ford F250 4WD- 8″ RADIUS ARM SYSTEM W/ DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS
PRODUCT OVERVIEW
DISCRIPTION

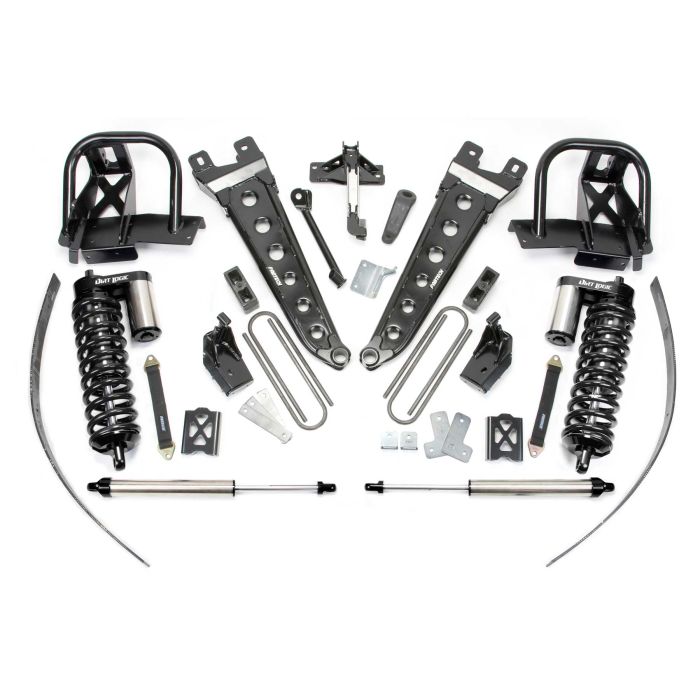

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is an add-a-leaf and a block & u-bolt kit. Fabtech Replacement Radius Arms Front Dirt Logic 4.0 Coilovers Trac Bar Relocation Bracket Sway Bar Drop Brackets Pitman Arm Rear Add-a-leafs Rear Block & U-bolt Kit
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Add-a-leafs
- Rear Block & U-bolt Kit
OTY PART # DESCRIPTION
1 FTS22139 COMPONENT BOX 1
1 FTS22143 COMPONENT BOX 2
2 FTS835011 FRONT DIRT LOGIC 4.0 COILOVER
1 FTS22105 REAR BLOCK & ADD-A-LEAF KIT
2 FTS810051 REAR DIRT LOGIC 2.25 NON RESI
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas mot
ADDITIONAL INFORMATION
MODEL F250 MAKE FORD SYSTEMS RADIUS ARM SYSTEM LIFT 8" DRIVE 4WD YEAR 2011, 2012, 2013, 2014, 2015, 2016
TIRES & WHEELS
- Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
- Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0″ OD Nickel Plated Body
- 3 5/8″ OD Billet Aluminum Piston
- 1 1/4″ Piston Rod
- Adjustable Coilover Construction
- 3/4″ Spherical Ball Mounting Ends
