PRODUCT OVERVIEW

DESCRIPTION

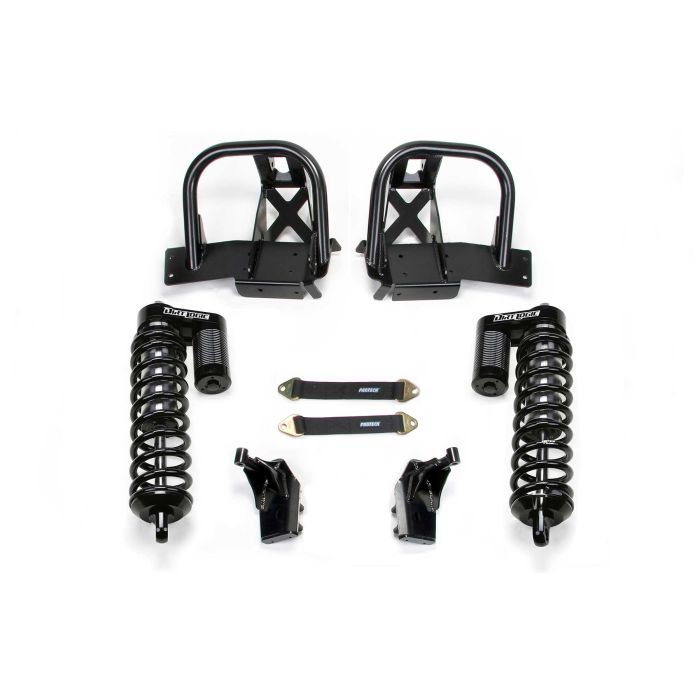

For the ultimate Super Duty suspension upgrade, this Coilover conversion directly replaces the stock Coil Spring buckets with super stout gusseted 1 3/4” tubing for exceptional strength. This Coilover conversion system allows use of the Dirt Logic 4.0 Coilover Shocks. To complete this high end Coilover conversion, opt for our hydraulic bump stops. This Coilover Shock System is compatible with our Radius Arm and 4 Link systems.

• Coilover Hoop Kit
• Front Dirt Logic 4.0 Coilovers

OTY PART # DESCRIPTION

1 FTS22146 COMPONENT BOX

2 FTS835012 FRONT DIRT LOGIC 4.0 COILOVER

INCLUDED SHOCKS

FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

• 4.0″ OD Stainless Steel Body
• 3 5/8″ OD Billet Aluminum Piston
• 1 1/4″ NitroSteel® Black Piston Rod
• Adjustable Coilover Construction
• 3/4″ Spherical Ball Mounting Ends

ADDITIONAL INFORMATION

MODEL F250, F350, F450

SYSTEMS FRONT DIRT LOGIC 4.0 COILOVER CONVERSION SYSTEM

MAKE FORD

LIFT 10"

DRIVE 4WD

YEAR 2011, 2012, 2013, 2014, 2015, 2016

FOOTNOTES

41. Will not work with Leveling or Basic System.
