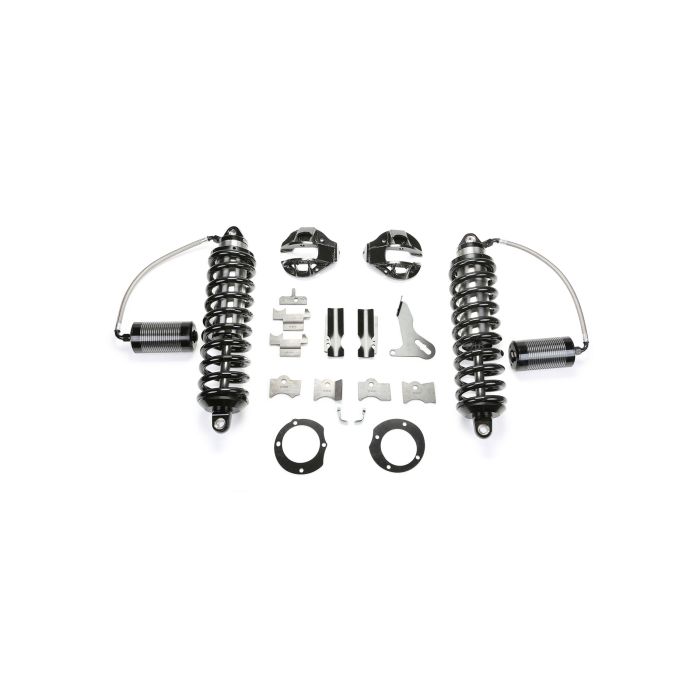

FABTECH 7" Dirt Logic 4.0 Resi Coilover Conversion - 2014-17 Ram 2500 4WD & 2013-17 Ram 3500 4WD

More Views

FABTECH 7" Dirt Logic 4.0 Resi Coilover Conversion - 2014-17 Ram 2500 4WD & 2013-17 Ram 3500 4WD


Part# K3081DL

$2,543.48

2543.48 In Stock
Description

Details

PRODUCT OVERVIEW

The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory TracK Bar bracket.

The Dirt Logic 4.0 Coilover features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0’s provide a super smooth highway ride with outstanding offroad damping for rough terrain.

This system qualifies for our 5/60 Powertrain Warranty. To find out more CLICK HERE

Kit# K3081DL

Use 38x13.50/R17 tires w/ 17x9 wheels w/ 5” BS w/ minor trimming

Use 38x13.50/R18 tires w/ 18x9 wheels w/ 5” BS w/ minor trimming

Use 38x13.50/R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

Use 38x13.50/R22 tires w/ 22x10 wheels w/ 5” BS w/ minor trimming

*FOOTNOTES 42. Will not fit gas motors.

Part # K3081DL     Description: (Extreme)

Dirt Logic Shocks

Dirt Logic 2.25 Stainless Steel Non Resi Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

- 2.25" OD Stainless Steel Body

- 2.0" OD Billet Aluminum Piston

- 7/8" NitroSteel® Black Piston Rod

- Polyurethane Mounting Ends

- Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose

Product Data

Additional Information

Component Description: FABTECH 7" Dirt Logic 4.0 Resi Coilover Conversion - 2014-17 Ram 2500 4WD & 2013-17 Ram 3500 4WD
Height x Length x Width (DIM) No
Product Data: No
Manufacturer No
Please choose your option: Clear
Product Notes: No
Product Requires: No
Ship Via: No
Weight 25.0000
Product Video N/A
Product Video Description N/A
Shipping Price: No
Los Banos California93635US
