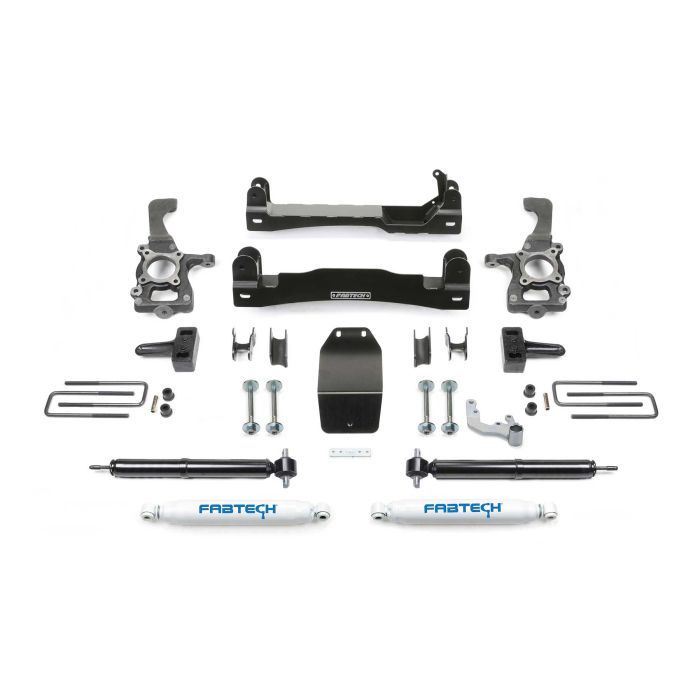

FABTECH 2015-18 FORD F150 4WD - 4″ BASIC SYSTEM W/REAR SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 33” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Basic System includes heavy duty front Coilover shocks for increased dampening capacity while retaining the factory coil springs and Fabtech’s Performance rear shocks.
The 4” System allows use of 33” tires and is ESC (Electronic Stability Control) and Traction Control compliant.
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Front Coilover Spacers
- Rear Block & U-bolt Kit
PERFORMANCE SHOCKS
OTY PART # DESCRIPTION
1 FTS22176 COMPONENT BOX 1
1 FTS22177 COMPONENT BOX 2
2 FTS7266 REAR PERFORMANCE SHOCKS
INCLUDED SHOCKS
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16″ Hardened Chrome Piston Rod
- 1 3/8″ OD Piston Closed Cell Foam insert
- High Flow 9 Stage Valving
STEALTH SHOCKS
OTY PART # DESCRIPTION
1 FTS22176 COMPONENT BOX 1
1 FTS22177 COMPONENT BOX 2
2 FTS6063 REAR STEALTH SHOCKS
INCLUDED SHOCKS
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
DIRT LOGIC SHOCKS
OTY PART # DESCRIPTION
1 FTS22176 COMPONENT BOX 1
1 FTS22178 COMPONENT BOX 2
1 FTS22183 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS810292 REAR DIRT LOGIC 2.25 NON RESI
INCLUDED SHOCKS
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5″ OD Stainless Steel Body
- 2.25″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8″ Spherical Ball Mounting Ends
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
YEAR 2015, 2016, 2017, 2018
MAKE FORD
MODEL F150
DRIVE 4WD
FOOTNOTES
14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
171. Will not fit diesel models.
