FABTECH 2005-07 FORD F350 4WD- 6″ BASIC SYSTEM W/ SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

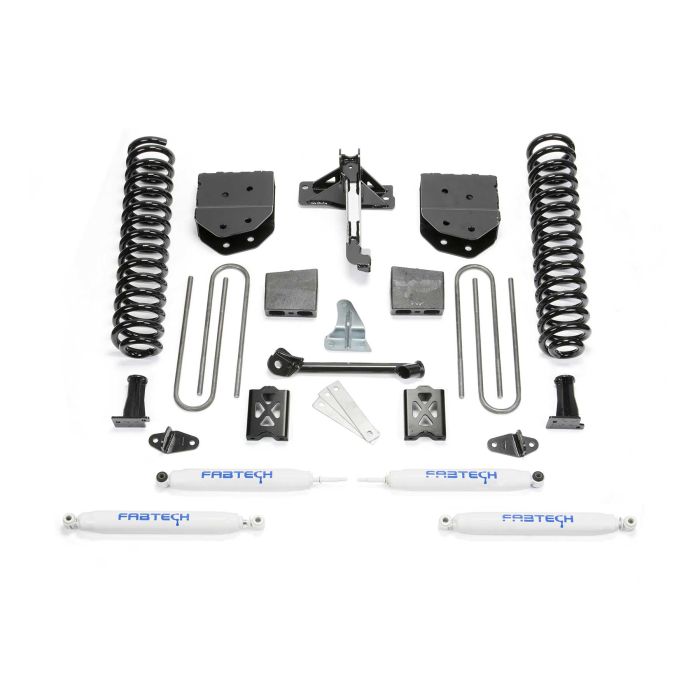

This system provides 6″ of lift to clear 315/70R17 tires for the entry level enthusiast. The system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Performance Coil Springs in the front and a Block & U-bolt kit in the rear. Also include are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

• Heavy Duty 1/4″ Thick, Radius Arm Drop Brackets
• Fabtech Front Coil Springs
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Block & U-bolt Kit

PERFORMANCE

QTY PART # DESCRIPTION

1 FTS22024BK COIL BOX KIT

1 FTS22029BK COMPONENT BOX

1 FTS22043 REAR BLOCK KIT

2 FTS7188 FRONT PERFORMANCE SHOCKS

2 FTS7266 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCKS

QTY PART # DESCRIPTION

1 FTS22024BK COIL BOX KIT

1 FTS22029BK COMPONENT BOX

1 FTS22043 REAR BLOCK KIT

2 FTS6188 FRONT STEALTH SHOCKS

2 FTS6063 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

DIRT LOGIC SHOCKS

QTY PART # DESCRIPTION

1 FTS22024BK COIL BOX KIT

1 FTS22029BK COMPONENT BOX

1 FTS22043 REAR BLOCK KIT

2 FTS810382 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming

ADDITIONAL INFORMATION

MODEL F350

SYSTEMS BASIC SYSTEM

MAKE FORD

LIFT 6"

DRIVE 4WD

YEAR 2005, 2006, 2007

FOOTNOTES

3. Non Dually models only.
