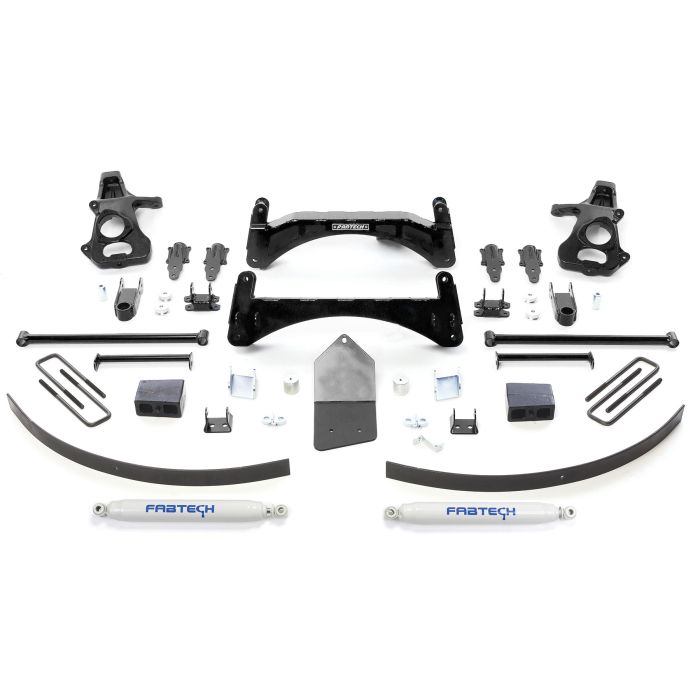

FABTECH 2007-13 GM C1500- 6″ BASIC SYSTEM W/ SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Our 6" Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35" tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. Rear suspension lift is accomplished via a block and add a leaf system. The Basic system features a front coilover spacer system utilizing the factory coilover assembly for a stock like ride. This system has been properly designed to work with the factory Stabilitrak® safety functions without reprogramming the vehicle’s computer.

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Impact Struts
• Rear Add-a-leaf
• Rear Block & U-bolt Kit

PERFORMANCE SHOCKS

QTY PART # DESCRIPTION

1 FTS21060BK COMPONENT BOX 1

1 FTS21061BK COMPONENT BOX 2

1 FTS21042BK COILOVER SPACER KIT

2 FTS7333 REAR PERFORMANCE SHOCK

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCKS

QTY PART # DESCRIPTION

1 FTS21060BK COMPONENT BOX 1

1 FTS21061BK COMPONENT BOX 2

1 FTS21042BK COILOVER SPACER KIT

2 FTS6333 REAR STEALTH SHOCK

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

TIRES & WHEELS

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

MAKE GM

MODEL C1500

DRIVE 2WD

YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013

SYSTEMS BASIC SYSTEM

LIFT 6"

FOOTNOTES

1. Will not fit models with factory AutoRide shoc
