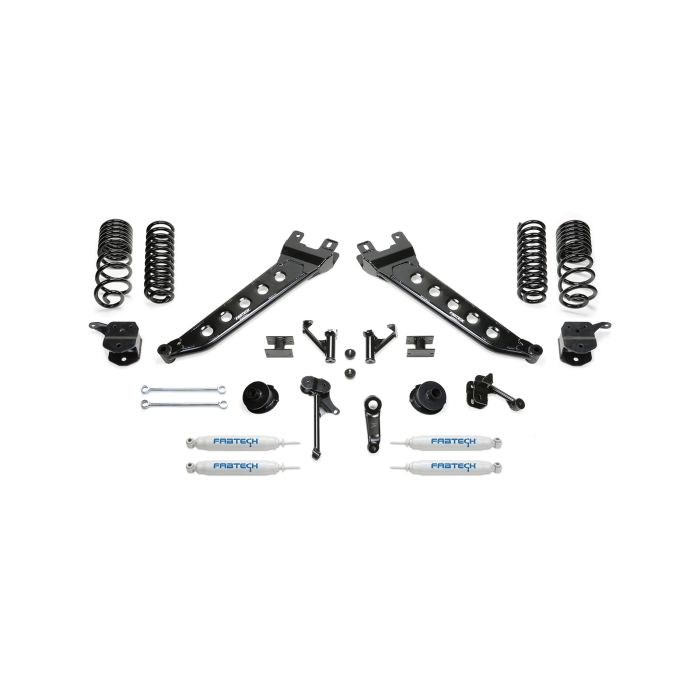

FABTECH 7" Radius Arm System w/Coil Springs - 2014-17 Ram 2500 4WD

More Views

FABTECH 7" Radius Arm System w/Coil Springs - 2014-17 Ram 2500 4WD


Part# K3156

$2,142.00

Please choose options below to see updated price.



* Required Fields

$2,142.00
2142 In Stock
Description

Details

PROIDUCT OVERVIEW

Fabtech’s new Coil Spring Suspension Systems for late model Ram 2500 trucks will provide a smoother on road ride than factory with the ability to handle heavy loads and rough offroad use.

As an industry exclusive Fabtech utilizes front coil springs with a straight spring design and patent pending angled lower mounts that produces a very smooth ride compared to stock. The factory springs are a high rate bowed style that naturally rides stiff with an overactive response to varying road conditions. Fabtech’s straight design has a lower spring rate that provides a smoother ride yet still retains the factory carrying capacity of the vehicle when required. No other Ram suspension system can offer this. The Fabtech rear coil springs on 2500’s are a dual stage design.

The first stage provides a supple ride quality when unloaded. The second stage provides the ability to handle factory carrying capacity loads when required giving the best of both worlds. The combination of Fabtech’s front straight coil springs and rear dual stage coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock.

This system qualifies for our 5/60 Powertrain Warranty.

 Kit# K3156

Use 38x13.50/R17 tires w/ 17x9 wheels w/ 5” BS w/ minor trimming

Use 38x13.50/R18 tires w/ 18x9 wheels w/ 5” BS w/ minor trimming

Use 38x13.50/R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

Use 38x13.50/R22 tires w/ 22x10 wheels w/ 5” BS w/ minor trimming

*FOOTNOTES 42. Will not fit gas motors.

.

Part # K3156     Description: (Basic)

Performance Shocks

Performance Shocks Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

- Twin Tube Hydraulic Construction

- 9/16" Hardened Chrome Piston Rod

- 1 3/8" OD Piston

- Closed Cell Foam insert

- High Flow 9 Stage Valving

.

Part # K3156M     Description: (Performance)

Stealth Shocks

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price. Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires. All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These “Nitrocarb” piston rods are finished in matte black for a complete “black out” shock package.

- 50mm OD seamless steel body

- 46mm High flow piston for best ride

- Vehicle specific valving designed for oversized tires

- Full floating piston separates gas from oil for a consistent ride

- 14mm Nitrocarb piston rod resists rock chips and rusting

- All black finish with raised nameplate as a signature of quality

.

Part # K3156DL     Description: (Extreme)

Dirt Logic Shocks

Dirt Logic 2.25 Stainless Steel Non Resi Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

- 2.25" OD Stainless Steel Body

- 2.0" OD Billet Aluminum Piston

- 7/8" NitroSteel® Black Piston Rod

- Polyurethane Mounting Ends

- Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
