PRODUCT OVERVIEW

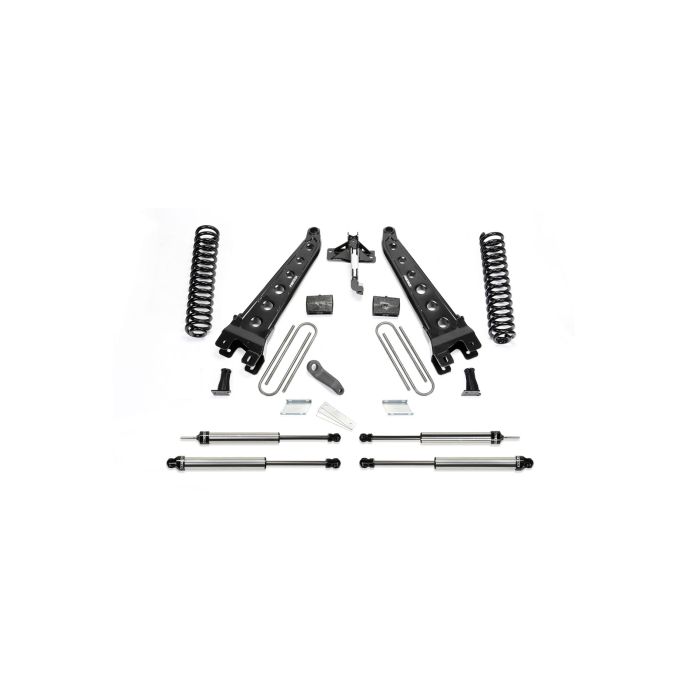

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6" replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

This system qualifies for our 5/60 Powertrain Warranty.

 Kit# K2218, K2218M, K2218DL

Use 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming

Oty Part # Description

Performance K2218

1 FTS22024BK Coil Box Kit

1 FTS22220 Component Box

1 FTS22219 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K2218M

1 FTS22024BK Coil Box Kit

1 FTS22220 Component Box

1 FTS22219 Rear Block Kit

2 FTS6188 Front Performance Shocks

2 FTS6063 Rear Performance Shocks

Dirt Logic K2218DL

1 FTS22024BK Coil Box Kit

1 FTS22220 Component Box

1 FTS22219 Rear Block Kit

2 FTS810382 Front Dirt Logic 2.25 Shocks

2 FTS810052 Rear Dirt Logic 2.25 Shocks

*FOOTNOTES

3. NON DUALLY MODELS ONLY.

163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.

165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.

167. DIESEL MODELS ONLY. 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
