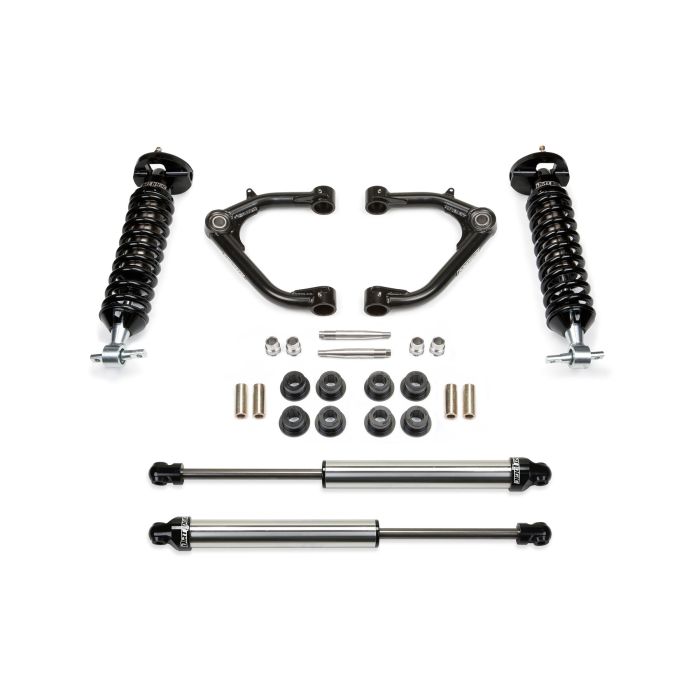

FABTECH 2007-18 GM C/K1500- 2″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
New upper control arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball. These arms are direct replacements for factory arms on suspensions that require additional strength. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. The chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Gain increased wheel travel with Dirt Logic 2.5 Coilover shocks.
- Upper Control Arms Built With Same Materials Found On Trophy Trucks
- .120" Wall 4130 Chromoly Tubing.
- 1.50" OD .250" wall DOM Bushing Barrels
- 1" ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
QTY PART # DESCRIPTION
1 FTS21128 UNIBALL UPPER CONTROL ARMS
1 FTS21203 FRONT DIRT LOGIC 2.5
COILOVERS 2 FTS810322 REAR DIRT LOGIC 2.25 NON RESI
INCLUDED SHOCKS
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5″ OD Stainless Steel Body
- 2.25″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8″ Spherical Ball Mounting Ends
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
Tire Size – 295/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 285/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
MAKE GM
MODEL C1500, K1500 DRIVE 2WD, 4WD YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
SYSTEMS UNIBALL UCA SYSTEM
LIFT 2"
FOOTNOTES
1. Will not fit models with Factory AutoRide shocks.
8. Will not fit all wheel drive models.
14. Cannot use OEM wheel and tire.
17. Does not fit standard cab.
128. Fits models with factory Forged Black Steel Upper Control Arm.
=
