PRODUCT OVERVIEW

DESCRIPTION

SPECIAL SHIPPING REQUIRED This item must be shipped truck freight. Delivery requires a business address with a dock or forklift.

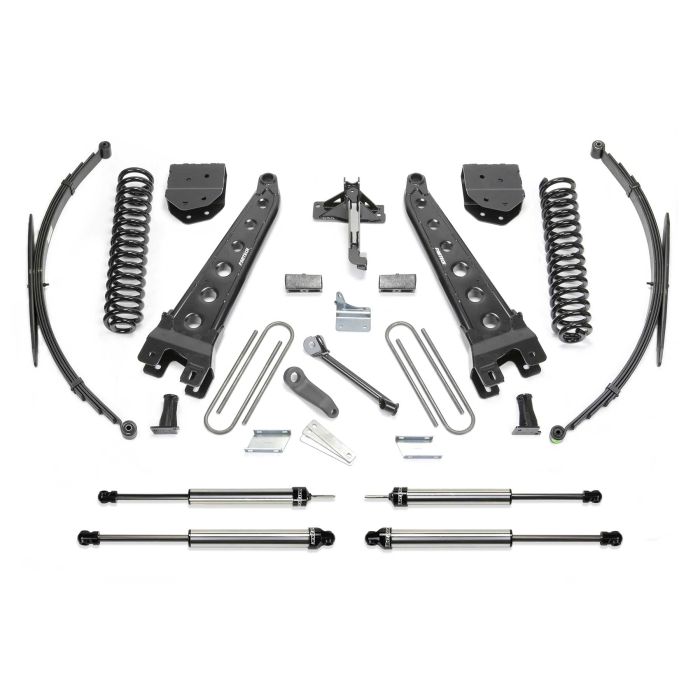

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes with replacement Leaf Springs and a block & u-bolt kit.

• Fabtech Replacement Radius Arms
• Fabtech Front Coil Springs
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Leaf Spring
• Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22081BK COMPONENT BOX 1

1 FTS22100BK COMPONENT BOX 2

1 FTS22108 REAR BLOCK & LEAF SPRING KIT

2 FTS810392 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810652 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming

Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

ADDITIONAL INFORMATION

DRIVE 4WD

LIFT 10"

MAKE FORD

MODEL F350

SYSTEMS RADIUS ARM SYSTEM

YEAR 2008, 2009, 2010

FOOTNOTES

3. Non dually models.

27. Front drive shaft modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capacity.

INSTRUCTIONS
