FABTECH 2008-16 FORD F250 4WD- 8″ 4 LINK SYSTEM W/ SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

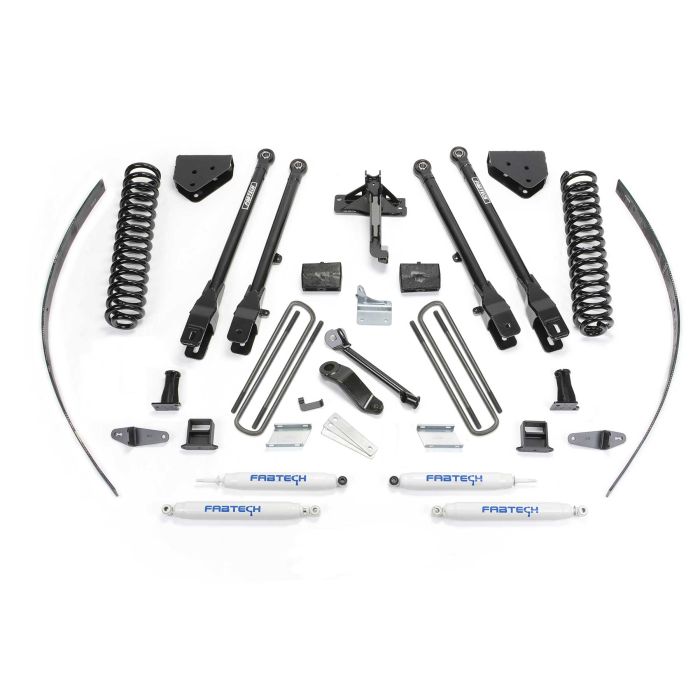

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is an Add-a-leaf and block & u-bolt kit.

• 2" OD Heavy Wall Links
• Fabtech Heavy Duty 5 Ton Joints®
• Fabtech Front Coil Springs
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Add-a-Leaf
• Rear Block & U-bolt Kit

PERFORMANCE SHOCKS

OTY PART # DESCRIPTION

1 FTS22025BK COIL BOX KIT

1 FTS22140 COMPONENT BOX 1

1 FTS22080BK COMPONENT BOX 2

1 FTS22104 REAR BLOCK & ADD-A-LEAF KIT

2 FTS7189 FRONT PERFORMANCE SHOCKS

2 FTS7266 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCKS

OTY PART # DESCRIPTION

1 FTS22025BK COIL BOX KIT

1 FTS22140 COMPONENT BOX 1

1 FTS22080BK COMPONENT BOX 2

1 FTS22104 REAR BLOCK & ADD-A-LEAF KIT

2 FTS6189 FRONT STEALTH SHOCKS

2 FTS6063 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

DIRT LOGIC SHOCKS

OTY PART # DESCRIPTION

1 FTS22025BK COIL BOX KIT

1 FTS22140 COMPONENT BOX 1

1 FTS22080BK COMPONENT BOX 2

1 FTS22104 REAR BLOCK & ADD-A-LEAF KIT

2 FTS810392 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming

Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

ADDITIONAL INFORMATION

SYSTEMS 4 LINK SYSTEM

MODEL F250

MAKE FORD

DRIVE 4WD

LIFT 8"

YEAR 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
