FABTECH- 2009-13 FORD F150 4WD- 4″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 35” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.

The Performance System features Dirt Logic 2.5 Coilover front shocks and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.

The 4” System allows use of 33” or 35” tires and is ESC (Electronic Stability Control) and Traction Control compliant.

• Heavy Duty 1/4″ Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Front Dirt Logic 2.5 Coilovers
• Rear Block & U-bolt Kit

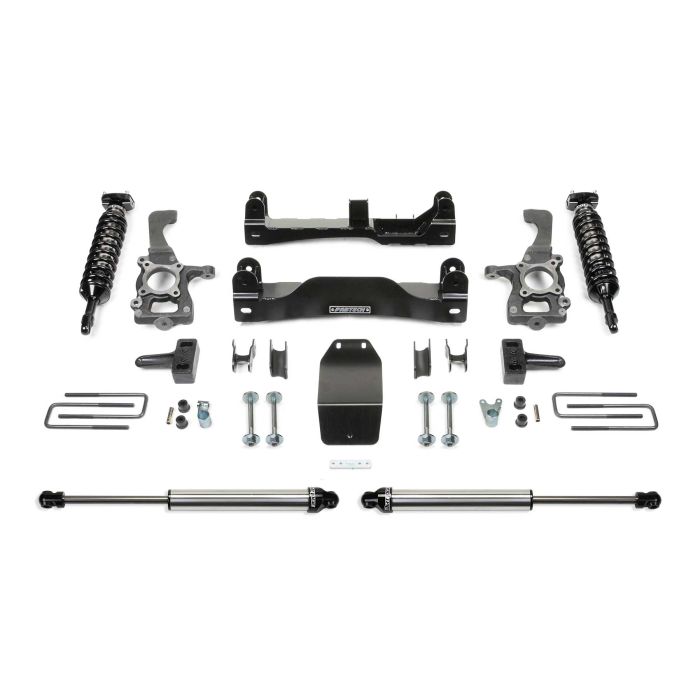

OTY PART # DESCRIPTION

1 FTS22155 COMPONENT BOX 1

1 FTS22157 COMPONENT BOX 2

1 FTS22199 FRONT DIRT LOGIC 2.5 COILOVERS

2 FTS810292 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

• 2.5″ OD Stainless Steel Body
• 2.25″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Cold Wound Coil Springs
• Adjustable Coilover Construction
• 5/8″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

SYSTEMS PERFORMANCE SYSTEM

MODEL F150

MAKE FORD

DRIVE 4WD

LIFT 4"

YEAR 2009, 2010, 2011, 2012, 2013

FOOTNOTES

14. Cannot use OEM wheel and tire.

20. Does not fit Standard Cab.

123. Will not fit Raptor models.

124. Requires cutting of fenderwell sheetmetal for use with 35″ tires.
