PRODUCT OVERVIEW

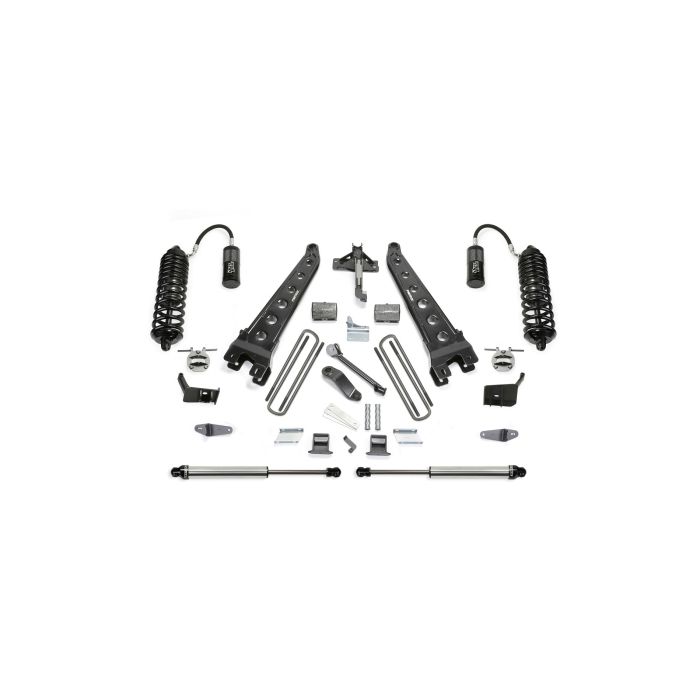

Fabtech continues its legendary Coilover Conversion systems with an all new design for the 2011-16 Super Duty. This new system utilizes the factory coil spring bucket for a fast, easy installation with an affordable price. The heavy duty bracketry allows the installation of the massive Dirt Logic 4.0 Remote Resi Coilover shocks.

Dirt Logic Coilovers are constructed with a Stainless Steel body and NitroSteel® piston rod for maximum corrosion resistance. The Dirt Logic 4.0 for 6” lift systems feature dual rate coil springs for a superior quality both on and offroad.

Kit# K2287DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

1 FTS22139 Component Box

1 1 FTS835234D Front Dirt Logic 4.0 Resi Coilover (Driver)

1 FTS835234P Front Dirt Logic 4.0 Resi Coilover (Passenger)

1 FTS22103 Rear Block Kit 2 FTS810052 Rear Dirt Logic 2.25 Shock

*FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motors.
