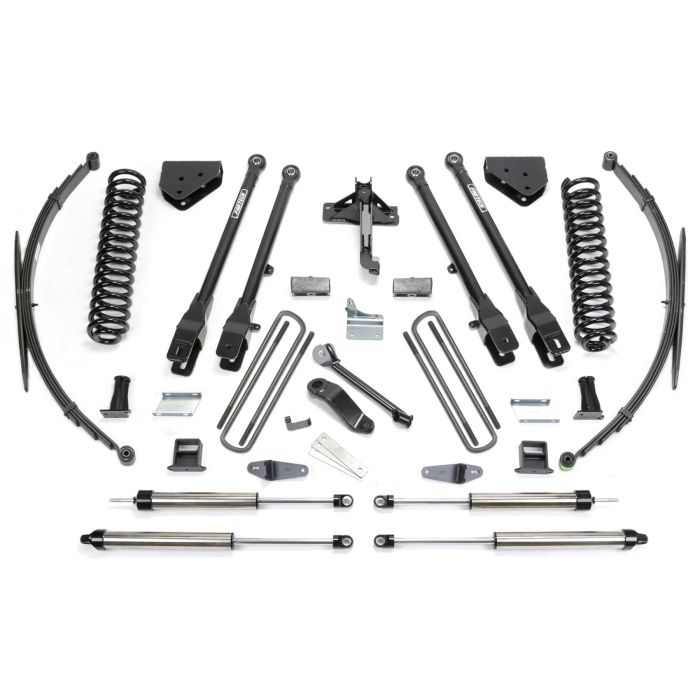

FABTECH 2011-16 Ford F250 4WD- 10″ 4 LINK SYSTEM W/ DIRT LOGIC SHOCKS
PRODUCT OVERVIEW
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Fabtech Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints
- Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear Block & U-bolt Kit
OTY PART # DESCRIPTION
1 FTS22081BK COMPONENT BOX 1
1 FTS22145 COMPONENT BOX 2
1 FTS22093BK COMPONENT BOX 3
1 FTS22107 REAR BLOCK & LEAF SPRING KIT
2 FTS810642 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810651 REAR DIRT LOGIC 2.25 NON RESI
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capaci
ADDITIONAL INFORMATION
DRIVE 4WD, LIFT 10", SYSTEMS 4 LINK SYSTEM, MODEL F250, MAKE FORD, YEAR 2011, 2012, 2013, 2014, 2015, 2016
TIRES & WHEELS
- Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
- Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ Piston Rod
- Polyurethane Mounting Ends
INSTRUCTIONS
