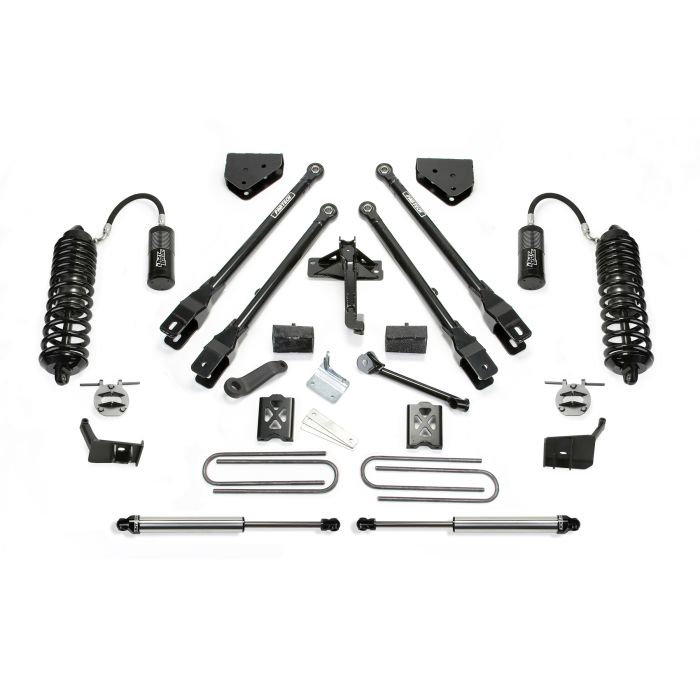

FABTECH 2011-16 Ford F250 4WD- 6″ 4 LINK SYSTEM W/FRONT DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Resi Coilover conversion. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a Block & U-bolt kit.

• 2" OD Heavy Wall Links
• Fabtech Heavy Duty 5 Ton Joints®
• Front Dirt Logic 4.0 Resi Coilovers
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22140 COMPONENT BOX 1

1 FTS22080BK COMPONENT BOX 2

1 FTS22101 REAR BLOCK KIT

1 FTS835234D FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)

1 FTS835234P FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)

2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motors.

ADDITIONAL INFORMATION

LIFT 6", DRIVE 4WD,  MAKE FORD, SYSTEMS 4 LINK SYSTEM,  MODEL F250 YEAR 2011, 2012, 2013, 2014, 2015, 2016

TIRES & WHEELS

• Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
• Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
• Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

FRONT DIRT LOGIC 4.0 RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

• 4.0″ OD Stainless Steel Body
• 3 5/8″ OD Billet Aluminum Piston
• 1 1/4″ NitroSteel® Black Piston Rod
• Adjustable Coilover Construction
• 3/4″ Spherical Ball Mounting Ends
• 4.0″ OD Aluminum Resi

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

INSTRUCTIONS
