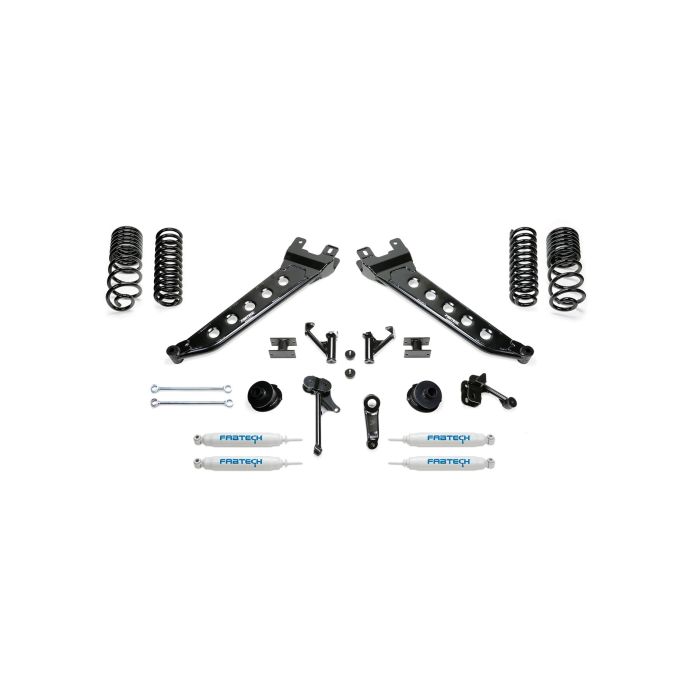

FABTECH-2014-17 Ram 2500 4WD- 5" Radius Arm System w/Coil Springs
Fabtech’s new Coil Spring Suspension Systems for late model Ram 2500 trucks will provide a smoother on road ride than factory with the ability to handle heavy loads and rough offroad use.
As an industry exclusive Fabtech utilizes front coil springs with a straight spring design and patent pending angled lower mounts that produces a very smooth ride compared to stock. The factory springs are a high rate bowed style that naturally rides stiff with an overactive response to varying road conditions. Fabtech’s straight design has a lower spring rate that provides a smoother ride yet still retains the factory carrying capacity of the vehicle when required. No other Ram suspension system can offer this.
The Fabtech rear coil springs on 2500’s are a dual stage design. The first stage provides a supple ride quality when unloaded. The second stage provides the ability to handle factory carrying capacity loads when required giving the best of both worlds.
The combination of Fabtech’s front straight coil springs and rear dual stage coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock. CLICK HERE to see the Fabtech Coil Spring advantage
This system qualifies for our 5/60 Powertrain Warranty.
Kit# K3140, K3140M, K3140DL
Use 37x12.50/R17 tires w/ 17x9 wheels w/ 5” BS w/ minor trimming
Use 37x12.50/R18 tires w/ 18x9 wheels w/ 5” BS w/ minor trimming
Use 37x13.50/R20 tires w/ 20x9.5 wheels w/ 5” BS w/ minor trimming
Use 37x13.50/R22 tires w/ 22x9.5 wheels w/ 5” BS w/ minor trimming
Part # K3140 Description: (Basic)
Performance Shocks Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16" Hardened Chrome Piston Rod
- 1 3/8" OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Part # K3140M Description: (Performance)
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price. Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires. All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These â€œNitrocarbâ€ piston rods are finished in matte black for a complete â€œblack outâ€ shock package.
- 50mm OD seamless steel body
- 46mm High flow piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Part # K3140DL Description: (Extreme)
Dirt Logic Shocks
Dirt Logic 2.25 Stainless Steel Non Resi Dirt Logic 2.25â€™s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25" OD Stainless Steel Body
- 2.0" OD Billet Aluminum Piston
- 7/8" NitroSteelÂ® Black Piston Rod
- Polyurethane Mounting Ends
- Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
|Component Description:||FABTECH "5" Radius Arm System w/Coil Springs - 2014-17 Ram 2500 4WD" / 5" Radius Arm System w/Coil Springs & Stealth Shocks - 2014-17 Ram 2500 4WD/ 5" Radius Arm System w/Coil Springs & Dirt Logic Shocks - 2014-17 Ram 2500 4WD|
|Please choose your option:||Clear|
