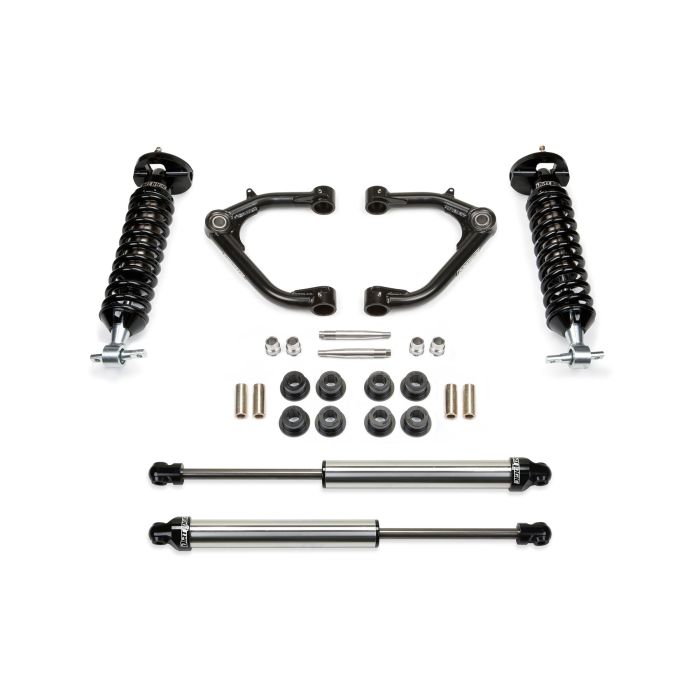

FABTECH 2014-18 GM K1500- 2″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

New upper control arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball. These arms are direct replacements for factory arms on suspensions that require additional strength. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. The chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Gain increased wheel travel with Dirt Logic 2.5 Coilover shocks

• Upper Control Arms Built With Same Materials Found On Trophy Trucks .
• 120" Wall 4130 Chromoly Tubing. 1.50" OD .
• 250" wall DOM Bushing Barrels
• 1" ID Stainless Steel American Uniball
• 17-4 Stainless Misalignments
• Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

17. Does not fit standard cab.

127. Fits models with Factory Forged Silver Aluminum UCA or Stamped Black Steel UCA.

ADDITIONAL INFORMATION

MAKE GM

MODELK1500

DRIVE 4WD

YEAR 2014, 2015, 2016, 2017, 2018

SYSTEMS UNIBALL UCA SYSTEM

LIFT 2"

TIRES & WHEELS

• Tire Size – 295/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
• Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
• Tire Size – 285/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

• 2.5″ OD Stainless Steel Body
• 2.25″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Cold Wound Coil Springs
• Adjustable Coilover Construction
• 5/8″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends
