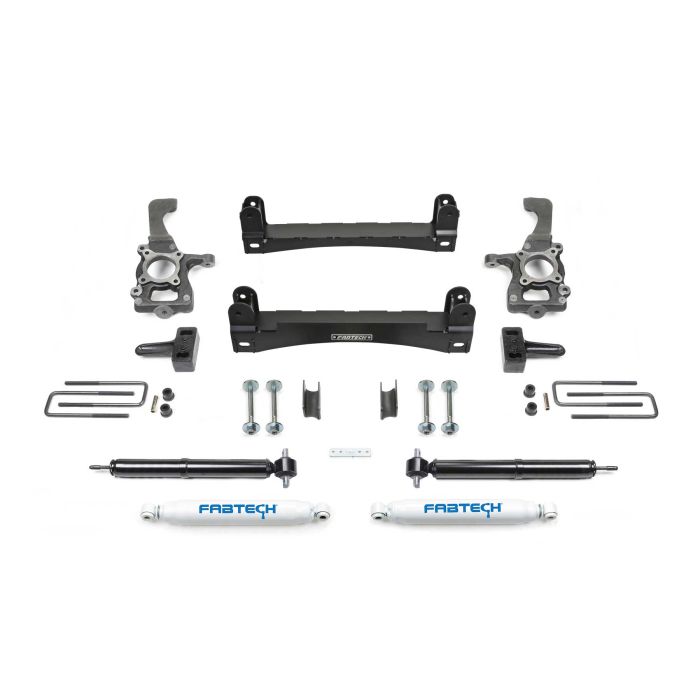

FABTECH 2015-20 FORD F150 2WD- 4″ BASIC SYSTEM W/REAR SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
This system feature Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25" lift block and extended length u-bolts.
Rear shock options include Fabtech’s Performance twin tube shocks.
This high quality system does not require drilling or cutting for installation and comes Fabtech’s 5/60 Powertrain warranty.
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22258 | COMPONENT BOX 1 |
1 | FTS22259 | COMPONENT BOX 2 |
2 | FTS7266 | REAR PERFORMANCE SHOCKS |
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16″ Hardened Chrome Piston Rod
- 1 3/8″ OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
STEALTH SHOCKS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22258 | COMPONENT BOX 1 |
1 | FTS22259 | COMPONENT BOX 2 |
2 | FTS6333 | REAR STEALTH SHOCKS |
INCLUDED SHOCKS
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
DIRT LOGIC SHOCKS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22258 | COMPONENT BOX 1 |
1 | FTS22260 | COMPONENT BOX 2 |
1 | FTS22263 | FRONT DIRT LOGIC 2.5 COILOVERS |
2 | FTS810292 | REAR DIRT LOGIC 2.25 SHOCKS |
INCLUDED SHOCKS
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5″ OD Stainless Steel Body
- 2.25″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8″ Spherical Ball Mounting Ends
TIRES & WHEELS
- Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
- Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
LIFT | |
---|---|
DRIVE | |
MAKE | |
SYSTEMS | |
MODEL | |
YEAR |
FOOTNOTES
14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
