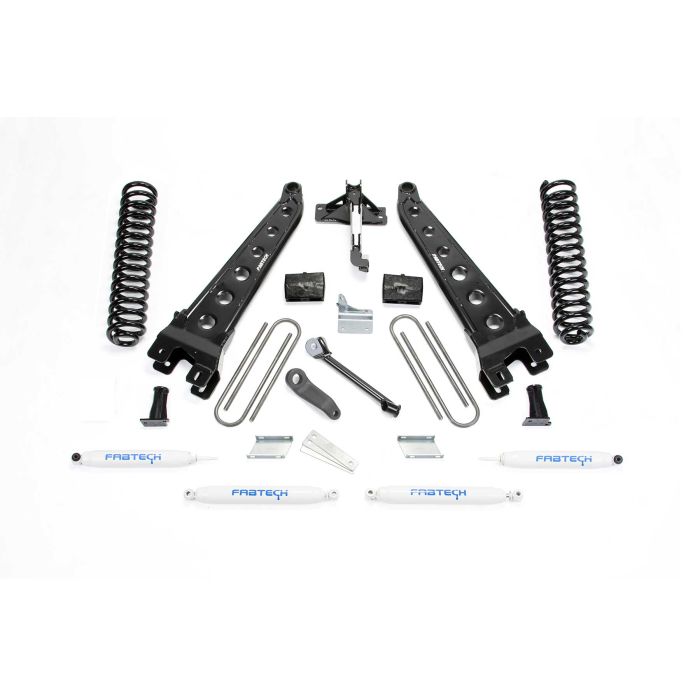

FABTECH 2008-16 Ford F250 4WD- 6″ RADIUS ARM SYSTEM SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

• Fabtech Replacement Radius Arms
• Fabtech Front Coil Springs
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

PERFORMANCE

1 FTS22024BK COIL BOX KIT

1 FTS22139 COMPONENT BOX

1 FTS22101 REAR BLOCK KIT

2 FTS7188 FRONT PERFORMANCE SHOCKS

2 FTS7266 REAR PERFORMANCE SHOCKS

STEALTH

1 FTS22024BK COIL BOX KIT

1 FTS22139 COMPONENT BOX

1 FTS22101 REAR BLOCK KIT

2 FTS6188 FRONT STEALTH SHOCKS

2 FTS6063 REAR STEALTH SHOCKS

DIRT LOGIC

1 FTS22024BK COIL BOX KIT

1 FTS22139 COMPONENT BOX

1 FTS22101 REAR BLOCK KIT

2 FTS810382 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas moto

ADDITIONAL INFORMATION

MODEL F250 SYSTEMS RADIUS ARM SYSTEM MAKE FORD LIFT 6" DRIVE 4WD YEAR 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

TIRES & WHEELS

• Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
• Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
• Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends
