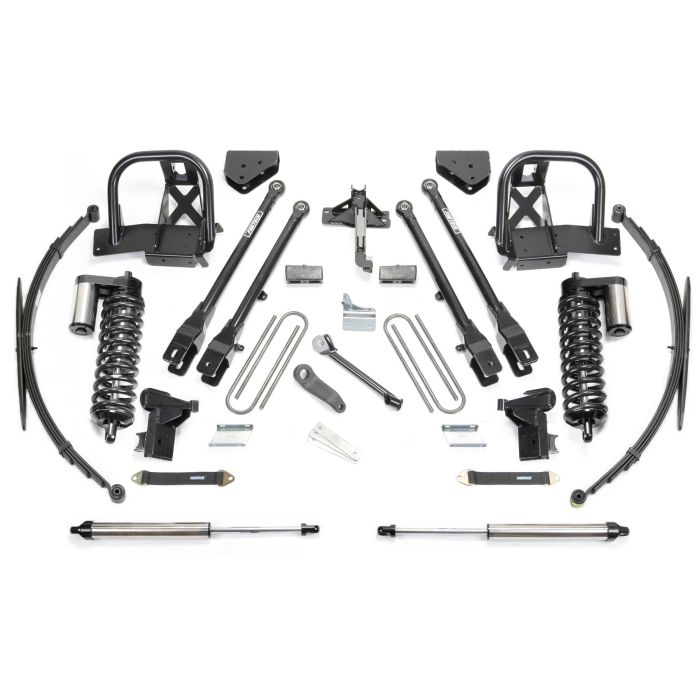

FABTECH 2011-16 Ford F250 4WD- 10″ 4 LINK SYSTEM W/DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our front Dirt Logic 4.0 Coilovers. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift comes from replacement Leaf Springs and a Block & U-bolt kit.

• 2" OD Heavy Wall Links
• Fabtech Heavy Duty 5 Ton Joints
• Front Dirt Logic 4.0 Coilovers
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm
• Rear Leaf Springs
• Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22145 COMPONENT BOX 1

1 FTS22093BK COMPONENT BOX 2

1 FTS22146 COMPONENT BOX 3

2 FTS835011 FRONT DIRT LOGIC 4.0 COILOVER

1 FTS22107 REAR BLOCK & LEAF SPRING KIT

2 FTS810651 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capaci

ADDITIONAL INFORMATION

DRIVE 4WD,  LIFT 10",  SYSTEMS 4 LINK SYSTEM,  MODEL F250,  MAKE FORD,  YEAR 2011, 2012, 2013, 2014, 2015, 2016

TIRES & WHEELS

• Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
• Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

FRONT DIRT LOGIC4.0 PIGGY BACK RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

• 4.0″ OD Body
• 3 5/8″ OD Billet Aluminum Piston
• 1 1/4″ Piston Rod
• Adjustable Coilover Construction
• 3/4″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ Piston Rod
• Polyurethane Mounting Ends
