PRODUCT OVERVIEW

Obtain 3.5" of front end lift without changing the front leaf springs. The super stout spring hangers replace the factory units without welding or cutting.

OTY PART # DESCRIPTION

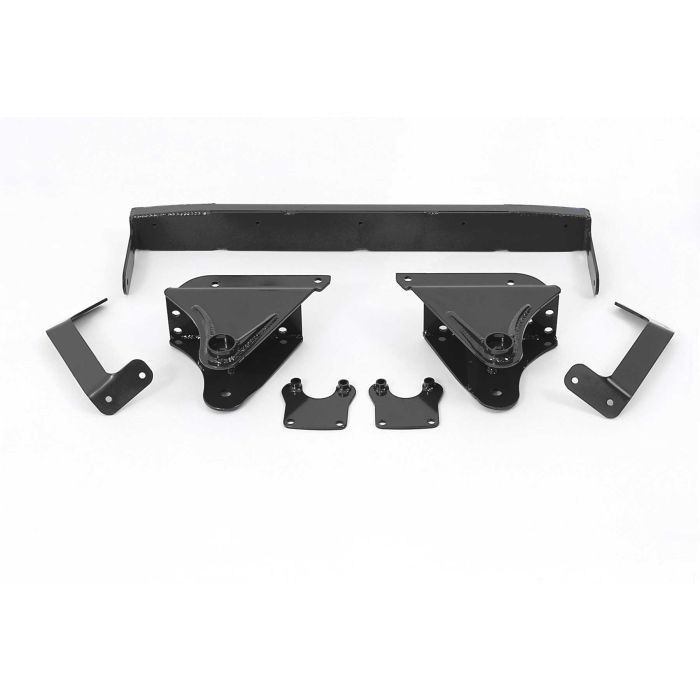

1 FTS424BK FRONT SPRING HANGER KIT

2 FTS7265 FRONT PERFORMANCE SHOCKS

2 FTS7333 REAR PERFORMANCE SHOCKS

FOOTNOTES

31. For precision centering of axle under vehicle order adjustable trac bar FTS451.

Will not fit 1999-00 models with trac bar bolt head size of 5/8

ADDITIONAL INFORMATION

LIFT 3.5",  DRIVE 4WD,  MAKE FORD,  SYSTEMS FRONT SPRING HANGER SYSTEM,  MODEL F250, F350 YEAR 1999, 2000.

TIRES & WHEELS

• Tire Size – 295/75R16 Wheel Size – 16×9 w/ 4 5/8in BS w/minor trimming
• Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving
