FABTECH 2015-16 GM C/K1500 SUV/SUT-6″ BASIC SYSTEM

PRODUCT OVERVIEW

DESCRIPTION

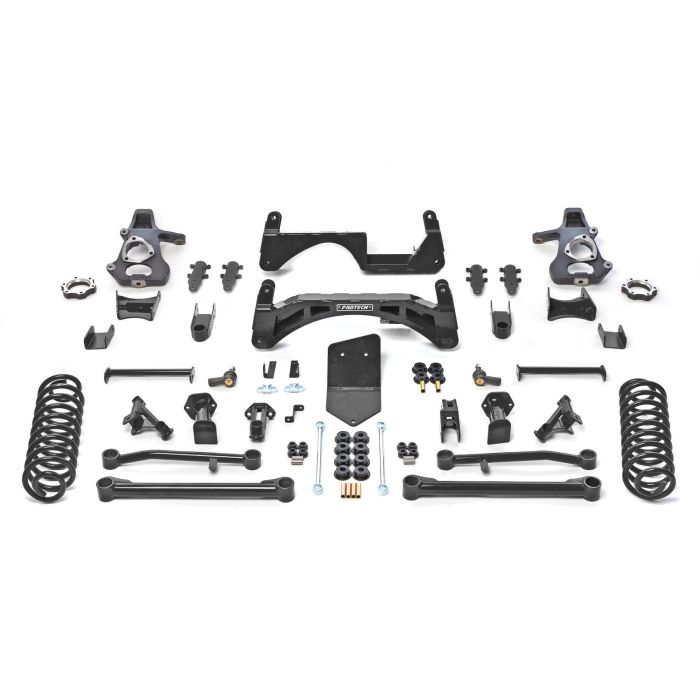

This system features our proven one piece high arched lower crossmember design with an integrated differential skid plate for solid support of the front suspension. Special attention was given to the design of replacement extended length steering knuckles to keep the track width of the vehicle near stock while retaining turning radius for easy maneuverability in tight areas.

The rear system features extended length tubular upper and lower link arms with an oversized Trac bar relocation bracket to properly place the axle under the vehicle with zero driveline vibration. Rear coil springs maintain proper ride height.

The Basic System also includes front strut assembly spacers and rear performance coil springs. This system provides a stock like ride and is compatible with all MagneRide and Non MagneRide models.

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Front Differential Skid Plate
• Ductile Iron Steering Knuckles
• Impact Struts Track Bar Relocation Bracket
• Rear Extended Length Tubular Upper & Lower Link Arms
• Rear Coil Springs

QTY PART # DESCRIPTION

1 FTS21137 COMPONENT BOX 1

1 FTS21159 COMPONENT BOX 2

1 FTS21138 COILOVER SPACER KIT

1 FTS21160 REAR COIL KIT

TIRES & WHEELS

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

YEAR 2015, 2016, 2017

MAKE GM

MODEL C1500 SUV, K1500 SUV

DRIVE 2WD, 4WD

LIFT 6"

SYSTEMS BASIC SYSTEM

FOOTNOTES

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

16. Utilizes stock rear shocks.

101. Some models may not sit level after install.

132. Will not fit 2WD Suburban models.

134. Will not fit 2WD Yukon XL models.

136. Some vehicles may experience front driveline vibration in 4WD. Order FTS21192 CV Driveshaft Kit if occurs.

=
